Molecular Sieve - Type 4A

Part Number: 4A116-30

  • Molecular Sieve Type 4A is the sodium form of Zeolite.
  • Type 4A is typically used in regenerable drying systems.
  • It removes water vapor or contaminants with a smaller critical diameter than 4 angstroms.
  • With a smaller pore size, Type 4A is less subject to contamination.
  • However, the moisture absorption rate will be less than that of Type 13X.

 4A116-30








Technical Data

Nominal Pore Size ............................................ 4 angstroms

Type of Crystal Structure ................................. Cubic

Bulk Density ........................................................ 46 lbs/cu. ft.

Equilibrium Water Capacity ............................. 24% wt.

Water Content (as shipped) ............................. 1.5% wt. (max.)

Heat of Absorption (max.) ................................ 1,800 BTU/lb Hp

Specific Heat (approx.) ...................................... 0.23 BTU/lbl°F

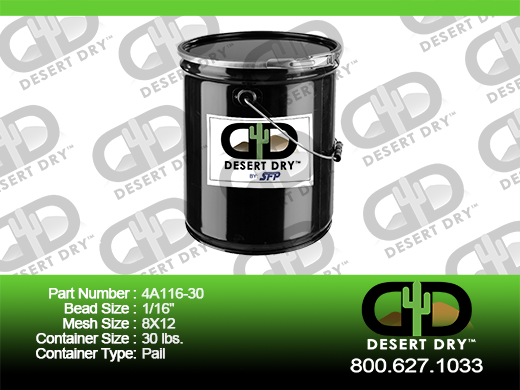

Product Information

Part Number: 4A116-30

Bead Size: 1/16"

Mesh Size: 8X12

Container Size: 30 lbs.

Container Type: Pail
