Molecular Sieve - Type 13X

Part Number: 13X116-26

  • Molecular Sieve Type 13X is a modified form of the sodium Zeolite
    with a pore diameter of 10 angstroms.
  • Type 13X is used commercially for general gas drying
    and air plant feed purification (simultaneous removal of Hp and CO2)
  • It is also used for liquid hydrocarbon
    and natural gas sweetening (H2S and mercaptan removal).
  • The larger pore size allows for faster absorption of moisture;
    however, it is more subject to contamination.

 13X116-26









Technical Data

Nominal Pore Size ............................................ 10 angstroms

Type of Crystal Structure ................................. Body Centerd Cubic

Bulk Density ........................................................ 42 lbs/cu. ft.

Equilibrium Water Capacity ............................. 29% wt.

Water Content (as shipped) ............................. 1.5% wt. (max.)

Heat of Absorption (max.) ................................ 1,800 BTU/lb Hp

Specific Heat (approx.) ...................................... 0.23 BTU/lbl°F

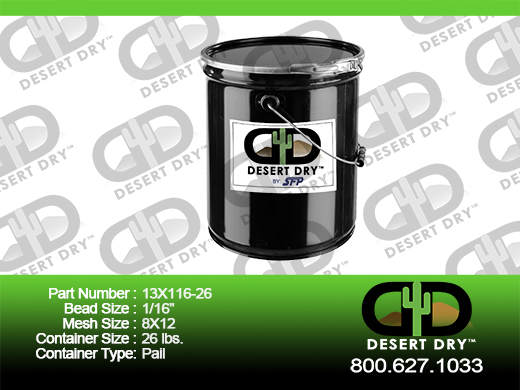

Product Information

Part Number: 13X116-26

Bead Size: 1/16"

Mesh Size: 8X12

Container Size: 26 lbs.

Container Type: Pail
